New Horizontal Smoker

Discussion in 'Smoker Builds' started by kybill, Apr 4, 2013.

  1. kybill

    kybill Newbie

    I am building a new horizontal smoker. It will be  38inch round x 54 inches long. Offset firebox is 30 inches round and 22 inches in length. Smoker is made out of 1/4 steel and firebox is 3/4 steel.

    Is a 6 inch chimney / flu  sufficient?


    Last edited: Apr 4, 2013
  2. kybill

    kybill Newbie


  3. kybill

    kybill Newbie

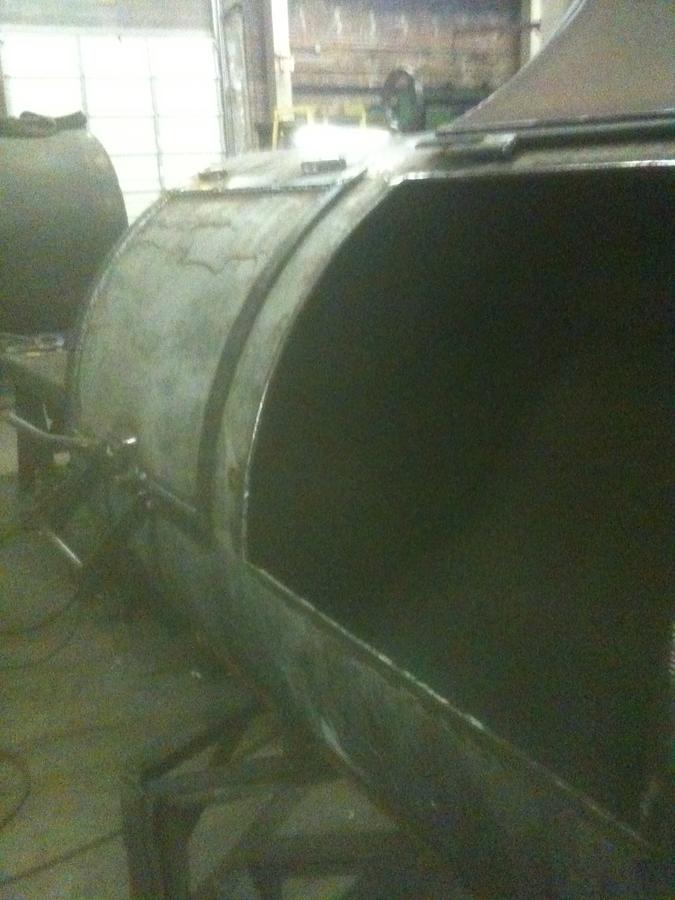

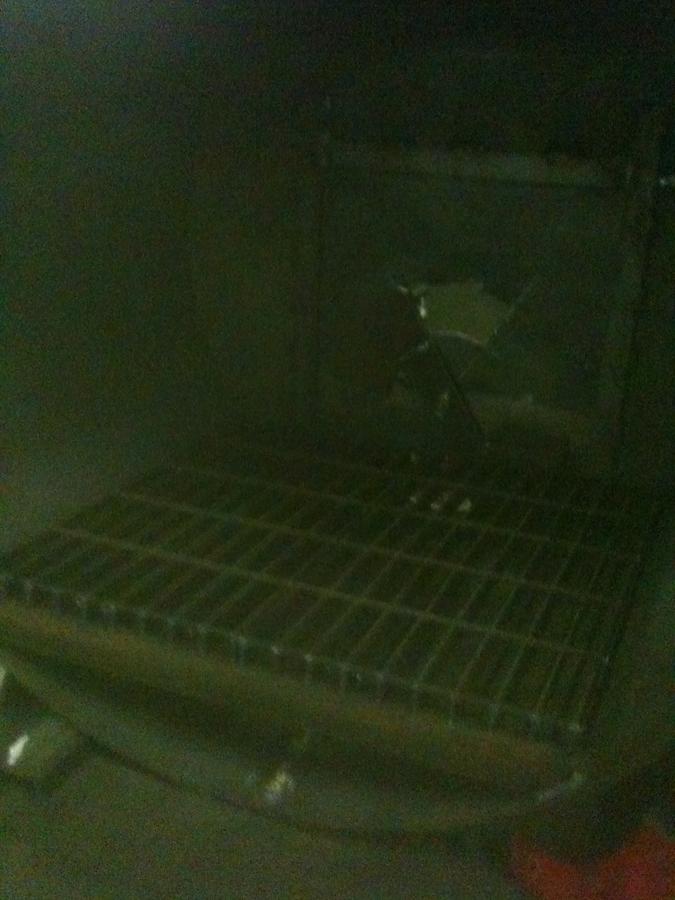

    Firebox from the inside before it is welded on.


    Last edited: Apr 4, 2013
  4. kybill

    kybill Newbie

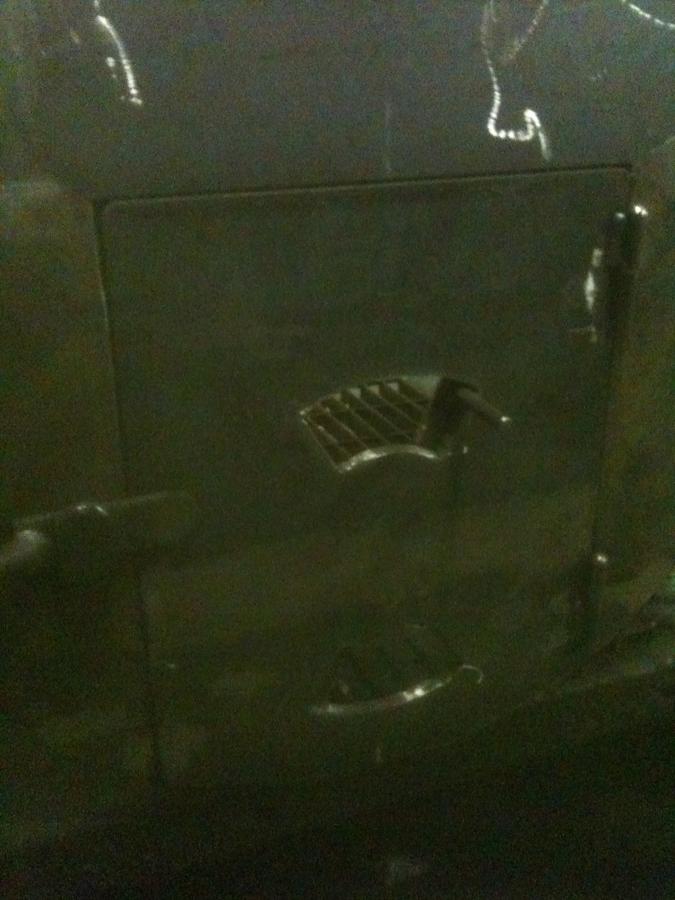

    Firebox door and vent.


    Last edited: Apr 4, 2013
  5. kybill

    kybill Newbie

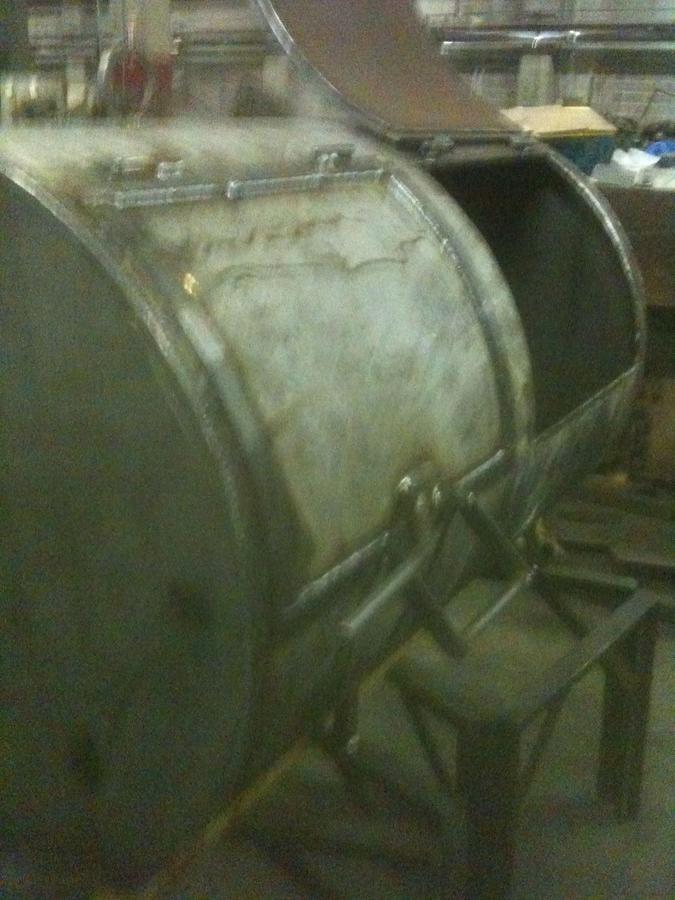

    Smoker. Have one door almost finished.


    Last edited: Apr 4, 2013
  6. kybill

    kybill Newbie

    I'm sorry about the picture quality. I'll try to improve.

  7. disturbed1

    disturbed1 Smoking Fanatic

    TN.
    Last edited: Apr 4, 2013
  8. kybill

    kybill Newbie

    Thank you very much. I hope you have a great weekend!!

  9. disturbed1

    disturbed1 Smoking Fanatic

    TN.
    You do the same just run your measurements of your smoker and it will calculate for you
    Nice build by the way now lets get her rolling with some TBS

    Last edited: Apr 4, 2013
  10. kybill

    kybill Newbie

    Thanks. I have meat in the freezer I just need to get the pit complete! I;m sure I will have a serious learning experience once I can fire it up.

  11. looks like a nice build. i see many years of great Q coming out of it. keep the pics coming.

    happy smoken.

    david

  12. bruno994

    bruno994 Master of the Pit

    Great looking build so far.  Can't wait to see her finished.

  13. looks like you'll have nice smoker when done

  14. kybill

    kybill Newbie


    My old smoker was not big enough. This is a picture of a rib cook I did last dove season.


    Last edited: Apr 5, 2013
  15. kybill

    kybill Newbie

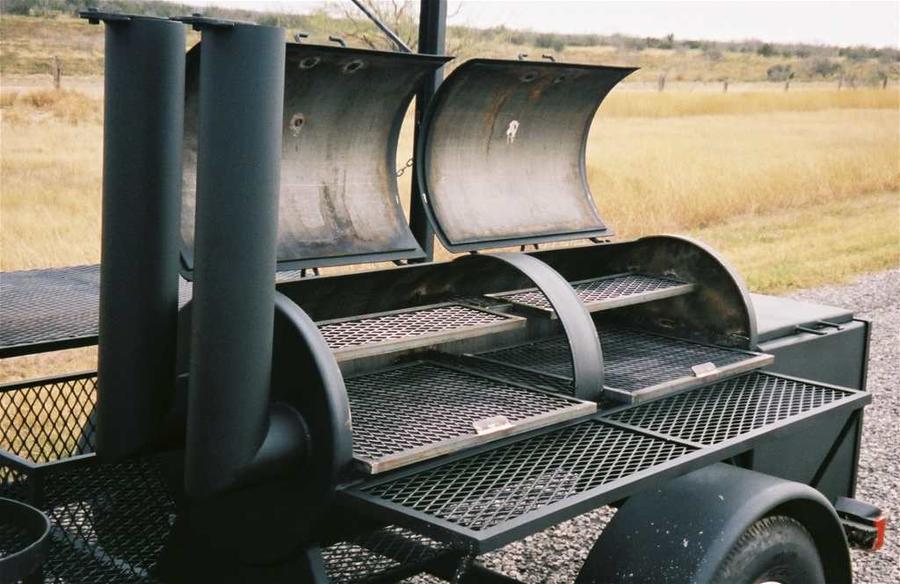

    OK guys. I'm thinking of the dual chimney. I can always choke it off but this may help with heat.

    Please comment as I have not done this yet.

  16. kybill

    kybill Newbie

    I will have better pics tomorrow.

  17. kybill

    kybill Newbie

    Please also comment on assisted door opening.

  18. so ms smoker

    so ms smoker Master of the Pit Group Lead OTBS Member

      So you are not planning a reverse flow smoker? I think it would be easier to maintain consistant temps. Sorry, I can't help with details, but the calculator should give you all you need to know.

      Mike

  19. kybill

    kybill Newbie

    No Mike I may add a warmer box above the fire pit later and turn it into a reverse flow when needed; I'll make the plate with handles and remove it when I'm not cooking reverse.


  20. bruno994

    bruno994 Master of the Pit

    Here is a thread on another forum if you are planning on building a "Hybrid" (ability to do both direct and reverse flow cooking) smoker.  This guy is local to me and put quite a bit of thinking and planning into his rig.

    http://www.thesmokering.com/forum/viewtopic.php?t=60519
