Wiring assistance

[Timber II]

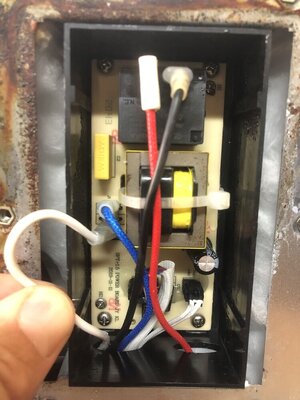

Ok my wires look a little different so can ya confirm what I think is correct?
30” masterbuilt digital

From all the pics tallbm has posted and through his detailed explanation I think I should connect white to black. And then blue to red. Yes?
Thanks again all, I’m excited to make this thing a Cadillac
Timber



[jaxgatorz]

Let's tag tallbm . He may see this faster that way.



[Timber II]

Thnx Jax- wasent sure how to tag



[zwiller]

Looks like we have same board. I did black+blue and white+red.



[Timber II]

Looks like all 4 of your wires are coming from the same hole zwiller?
Thanks for posting



[zwiller]

Looks like all 4 of your wires are coming from the same hole zwiller?
Thanks for posting

CORRECT; Happy it matches up for you! I recall the wire colors did not match Tall's writeup. No problem for me as I am pretty familiar with wiring and electronics and tested with my meter when I did it. From memory, the white and black wires are the cord (power) and the red and blue from the element (heat).



[Timber II]

Mines different tho- red wire is from a diff hole just like tallbm’s #4 wire would be



[zwiller]

Mines different tho- red wire is from a diff hole just like tallbm’s #4 wire would be

WOW good eye but does not matter.



[tallbm]

Ok my wires look a little different so can ya confirm what I think is correct?
30” masterbuilt digital

From all the pics tallbm has posted and through his detailed explanation I think I should connect white to black. And then blue to red. Yes?
Thanks again all, I’m excited to make this thing a Cadillac
Timber

zwiller has you covered.
It's always black smooth to a braided wire (red of blue in your case) and then white smooth to the other braided wire. That's it :D



[Timber II]

Thank you gents- will get that step completed after the hunt this morn.



[Fueling Around]

I really dislike wire nuts especially for solid to stranded braided connections.
Started using WAGO Lever Nuts.

https://www.amazon.com/WAGO-221-412-Lever-Nuts-2-Conductor-Connectors/dp/B07W4RQ6R6/ref=sr_1_10?keywords=wago&qid=1700143887&sr=8-10&th=1

edit: corrected wording.



[zwiller]

I really dislike wire nuts especially for solid to braided connections.
Started using WAGO Lever Nuts.

https://www.amazon.com/WAGO-221-412-Lever-Nuts-2-Conductor-Connectors/dp/B07W4RQ6R6/ref=sr_1_10?keywords=wago&qid=1700143887&sr=8-10&th=1

I tend to agree but if wire nuts pass the tug test it's good. I normally use these for this sorta a stuff.



[02ebz06]

I really dislike wire nuts especially for solid to braided connections.
Started using WAGO Lever Nuts.

https://www.amazon.com/WAGO-221-412-Lever-Nuts-2-Conductor-Connectors/dp/B07W4RQ6R6/ref=sr_1_10?keywords=wago&qid=1700143887&sr=8-10&th=1

Those are pretty slick. Had not seen them before.



[tallbm]

Thank you gents- will get that step completed after the hunt this morn.

May you succeed on the hunt and have something additional to smoke when the rewire is complete :D



[Fueling Around]

I tend to agree but if wire nuts pass the tug test it's good. I normally use these for this sorta a stuff.

...

Zap its are slick and water tight is a big plus



[chopsaw]

Lever Nuts.

I put some lights in the ceiling of the basement that had those connections . Pretty slick .



[Timber II]

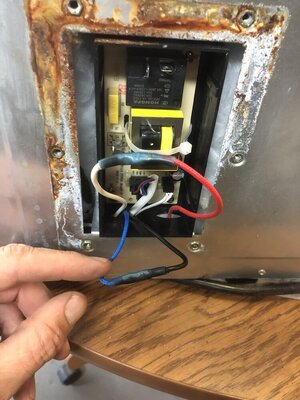

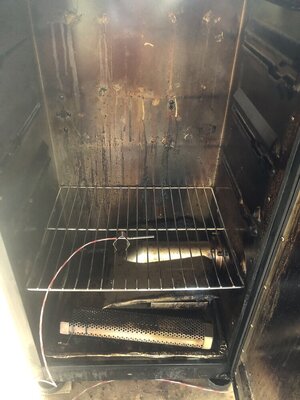

Wiring step complete! Do I just put the temp drone from the PID on the bottom as shown?

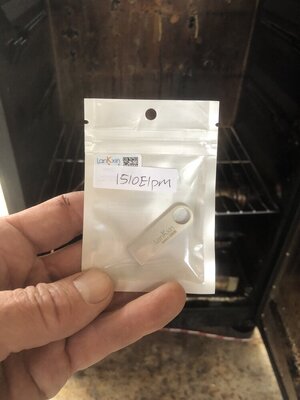

And what’s the little thing in the bag?
No instructions came with this thing.
Thanks again
Timber



[zwiller]

And what’s the little thing in the bag?
No instructions came with this thing.

OMG I am laughing... The instructions are on the usb stick in the bag.

Congrats! Looks good.



[chopsaw]

temp drone from the PID on the bottom

I'd put it somewhere in the middle .

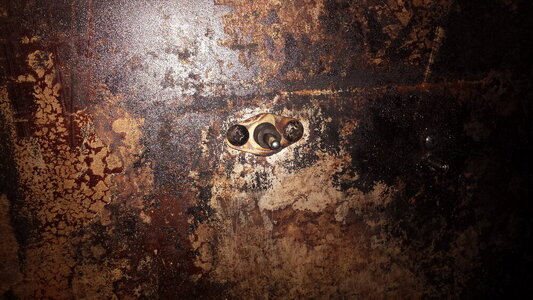

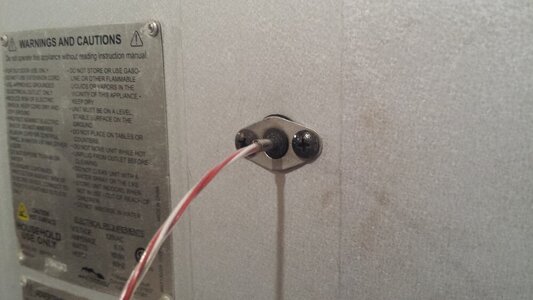

I put mine through the back wall .

It can be pulled into the smoker more .

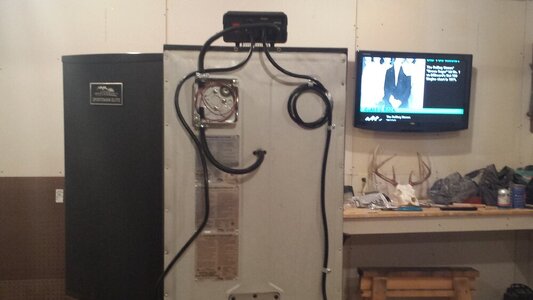

Everything mounted on back .

That stick is a new one on me . Mine didn't have that . I had to download the manual .



[Timber II]

Haha I ain’t real smart w technology zwiller lol
Looks good chopsaw - nice euro mount back there too….I do all mine like that also.
