Stainless cook chamber build Reverse Flow

[kingddemo]

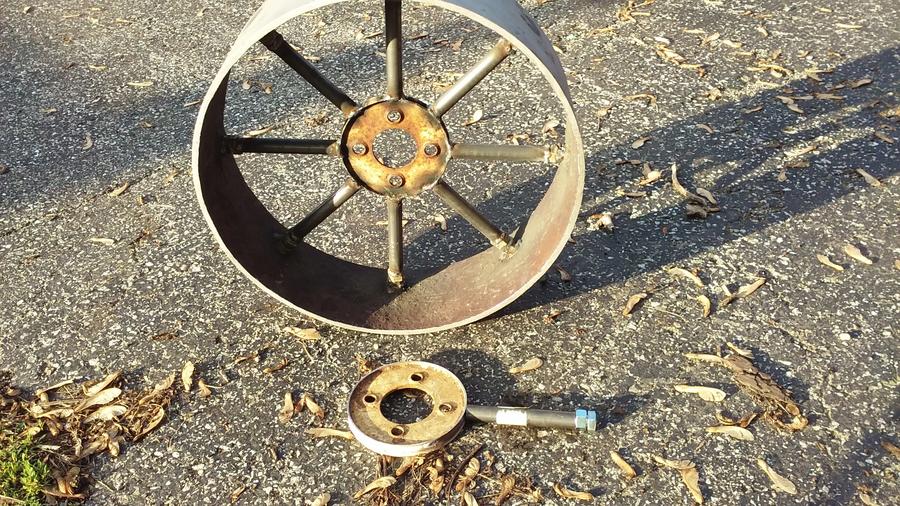

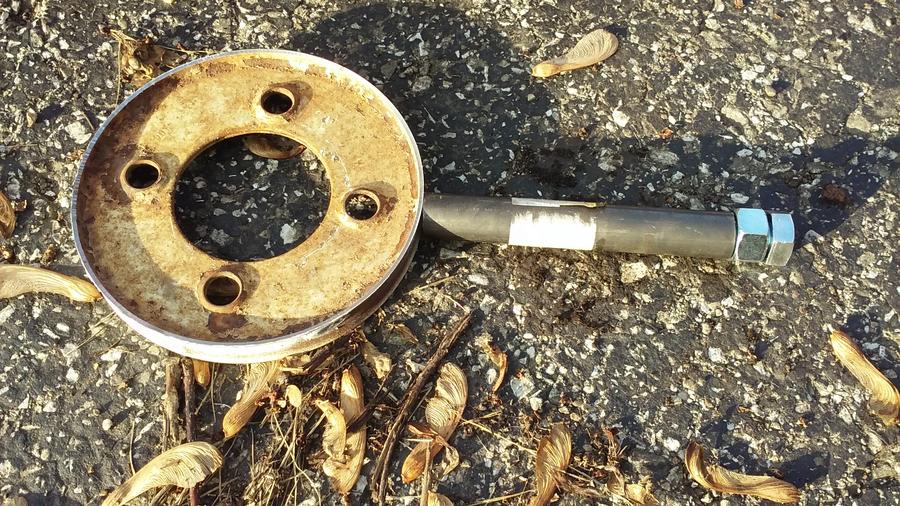

I'm using an old trailer axle because it has good bearings & will roll good.  A 5/8 bolt fits nice inside 1/2" pipe.  I cut the pipe 1" short, then trued them up square on the sawcut edge.  I welded them to the hub, slipped in the bolts & nuts, then rough centered them inside the rim.  After bolting on the axle, an indicator showed the highs & lows & I was able to center it up just like a 4 jaw chuck on a lathe, then started tacking & welding solid.   Not sure why picks aren't coming through.  Hope the details help you.



[kingddemo]


• kingddemo
• May 2, 2016


• kingddemo
• May 2, 2016

Finally got the pics to come through



[kingddemo]


• kingddemo
• May 17, 2016

These wheels should roll over about anything.


• kingddemo
• May 17, 2016

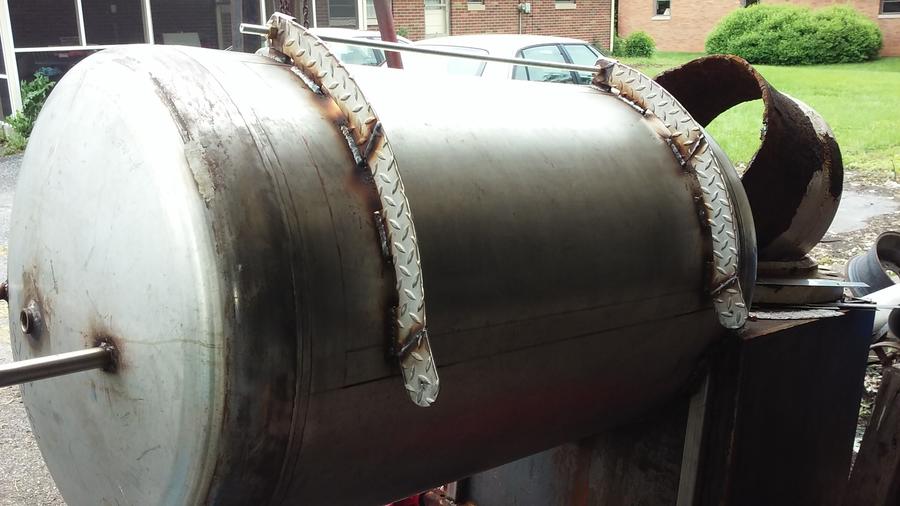

Got the stiffening ribs/hinges/handle attachment welded on.


• kingddemo
• May 17, 2016

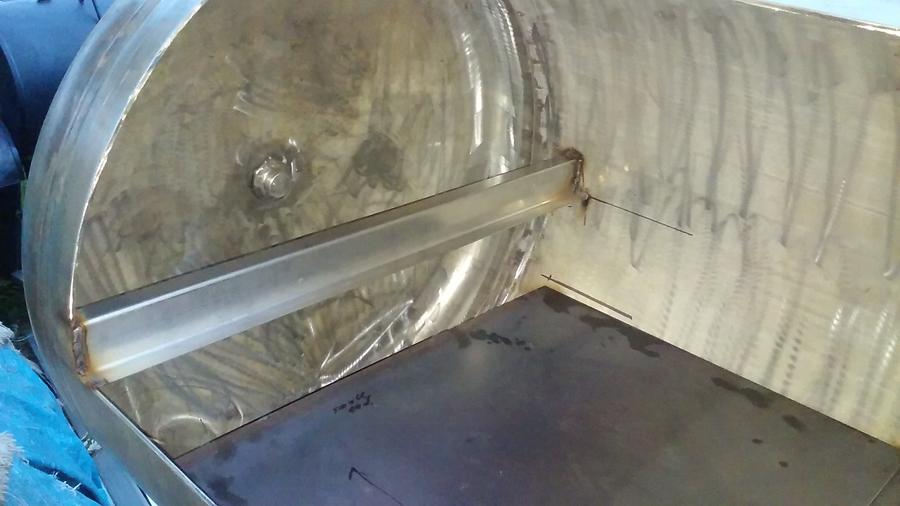

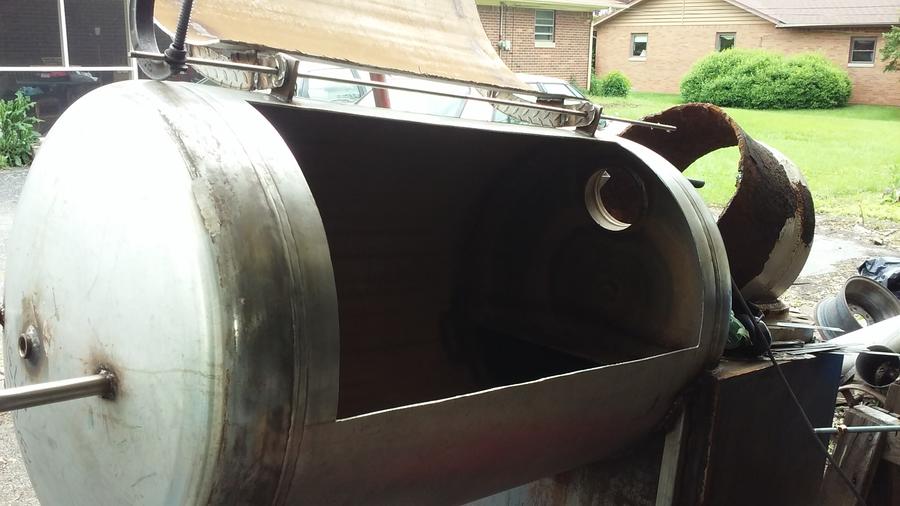

Finally get a good look at the inside.  Needed a pressure washing, then knotted cup wheel in a grinder then a flap wheel to clean up.


• kingddemo
• May 17, 2016

Reverse flow plate is 1/4"


• kingddemo
• May 17, 2016

I've been busy since the last post.  Hope to cook on it this weekend.



[kingddemo]

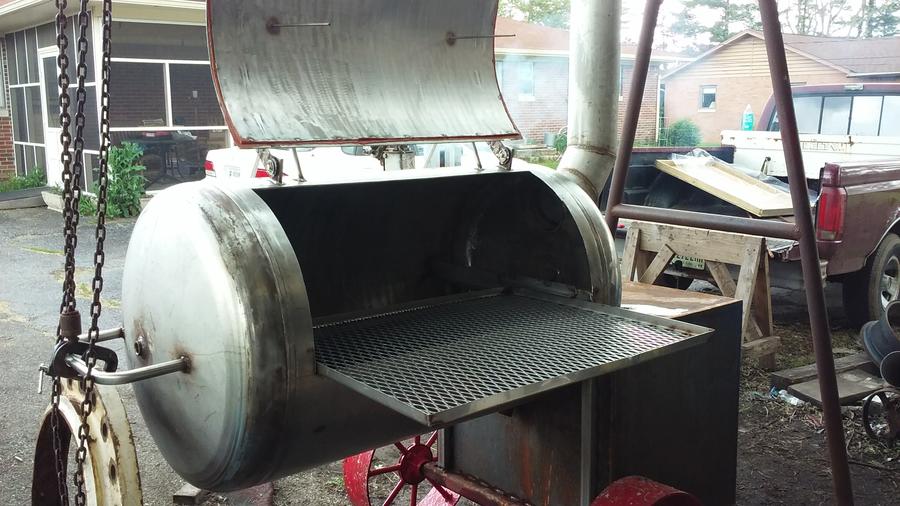

Made the grate from 5/8" rebar.  Still need to put expanded metal on top.


• kingddemo
• May 19, 2016

I'm trying to make it functional for this weekend.



[kingddemo]

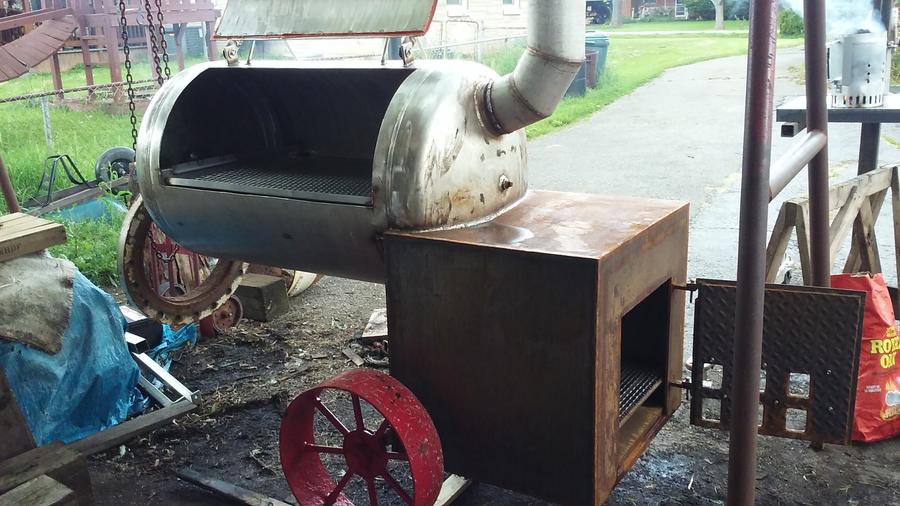

I've been hitting it hard this week & cooked on it!  It's not finished, but it is functional.  Cooked a pizza & roasted veggies that turned out well.  The temps got away from me in the wee hours of the morning & burnt the outside of the pork butt & brisket.  I was able to cut off the black parts & salvage the inside & still feed 40 people.  Got lucky!  It'll be a learning curve to get it figured out.  Also have a name for it:  "Scrap Pass Smoker" since I got all the stainless for free from my employer with 2 scrap passes from my management.


• kingddemo
• May 23, 2016


• kingddemo
• May 23, 2016


• kingddemo
• May 23, 2016



[kingddemo]


• kingddemo
• Jun 1, 2016

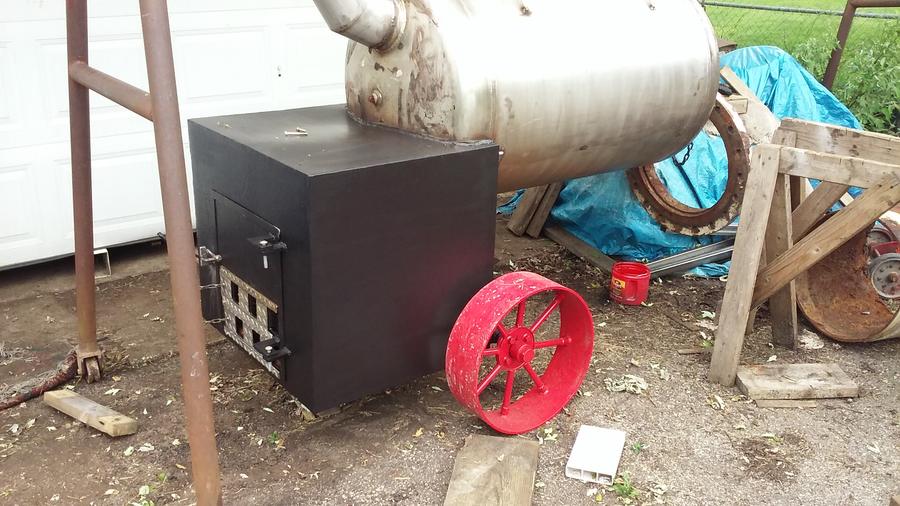

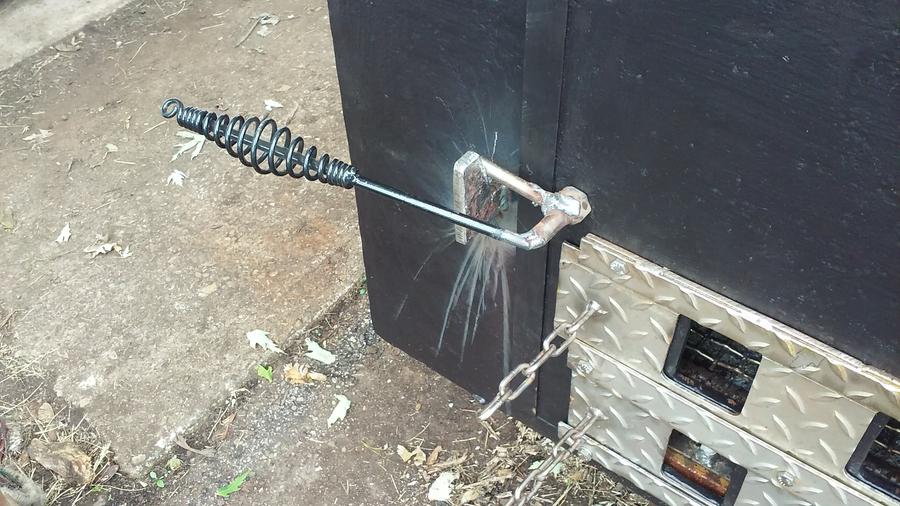

Built the firebox latch & painted the firebox.


• kingddemo
• Jun 1, 2016

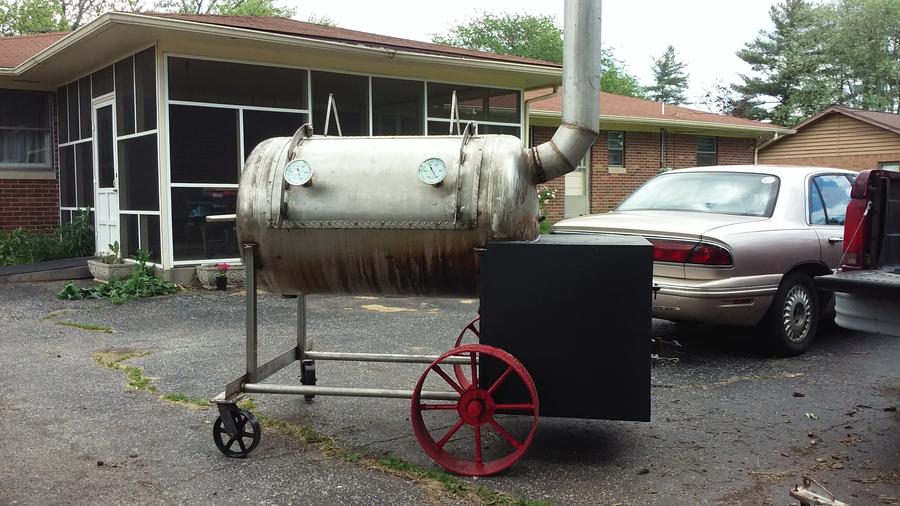

Still need to build structure & install casters, but it balances well on the big wheels.



[aussiq]

Can you explain scrap passes? Iam in australia and ive never heard of it before.



[kingddemo]

I work for a Fortune 500 company.  If there are materials that are deemed to be scrap, and if we want those materials, we can ask our supervisor for a piece of paper giving permission for us to take those things out of the plant.  Actually, my father worked for the same company & he brought home some of the stainless materials on a scrap pass 50+ years ago.  I'd say it's the best way to recycle!



[martyinco]

Lucky! I wish I could get "scrap" like that



[aussiq]

Lucky! I wish I could get "scrap" like that :thumb1:

me too. I gave up on looking for a tank so i just had to make one from new material



[kingddemo]

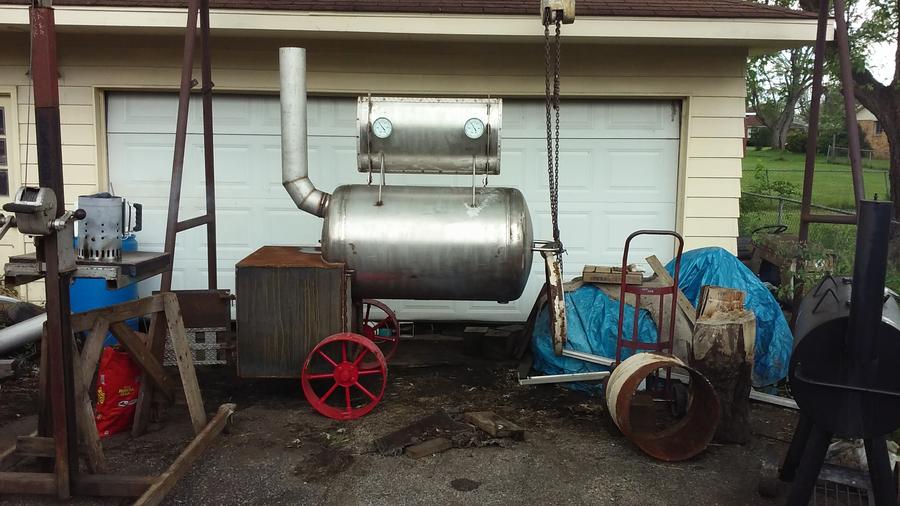

I added an additional air vent in the door and got structure & casters under the cook chamber end.


• kingddemo
• Jun 7, 2016


• kingddemo
• Jun 7, 2016

It's functional, now, but I'll probably be fine tuning it for a while.



[kingddemo]

Here's some Qview!


• kingddemo
• Jun 13, 2016



[aussiq]

Looks more then functional now. That looks yum. Is that ur first cook? Gota be happy with that



[kingddemo]

It may never be completely done, but it's getting close.  The ribs turned out good enough to take to work to share samples.  I've done some pork shoulders & brisket as well.  I'm learning how to cook on it.  Still need to put in an upper rack.  The balance point was right where the big wheels are mounted, so I added a 50# ballast on the support for the casters.
