New guy first build

Discussion in 'Reverse Flow' started by bishgeo, Mar 10, 2014.

  1. bishgeo

    bishgeo Smoking Fanatic

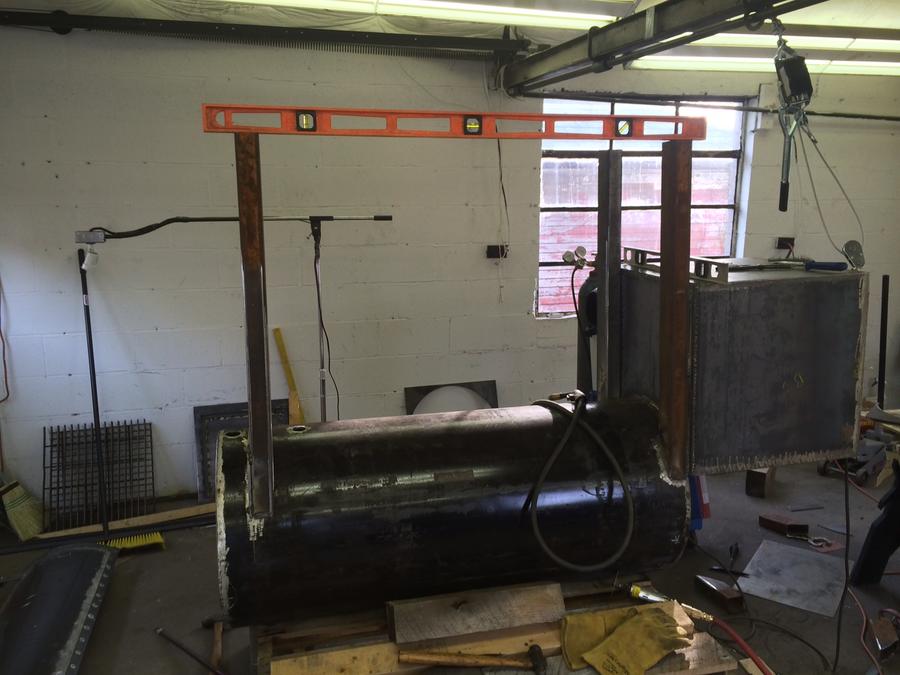

    Well it should hold my smoker up shouldn't it. Trying to figure out what to do for feet on legs. Seporate pads or I beam or like 1x6 flat tube or something about 3 feet across. It's going in one spot and never move.

  2. bishgeo

    bishgeo Smoking Fanatic

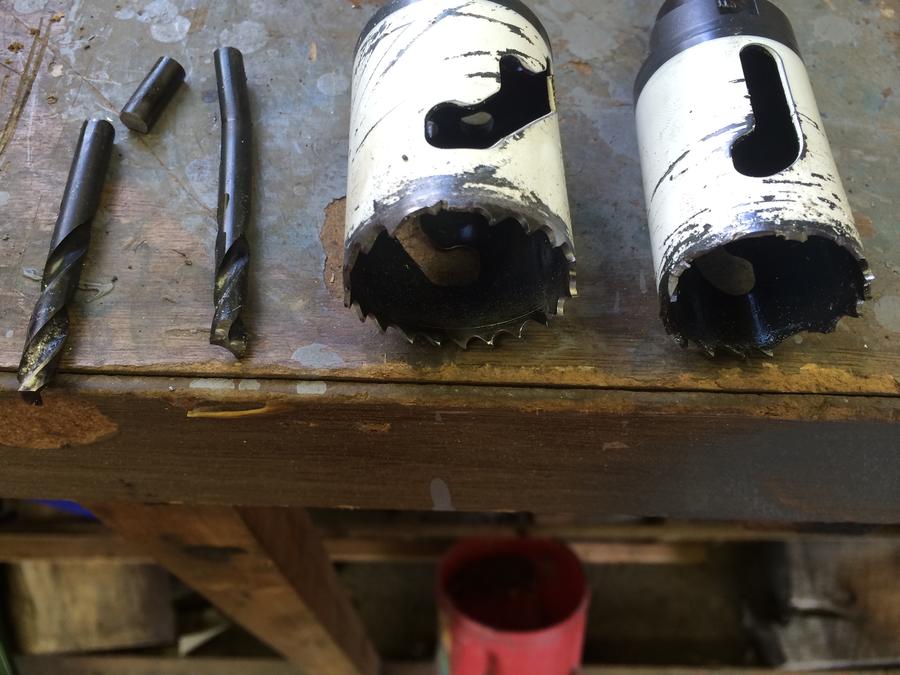

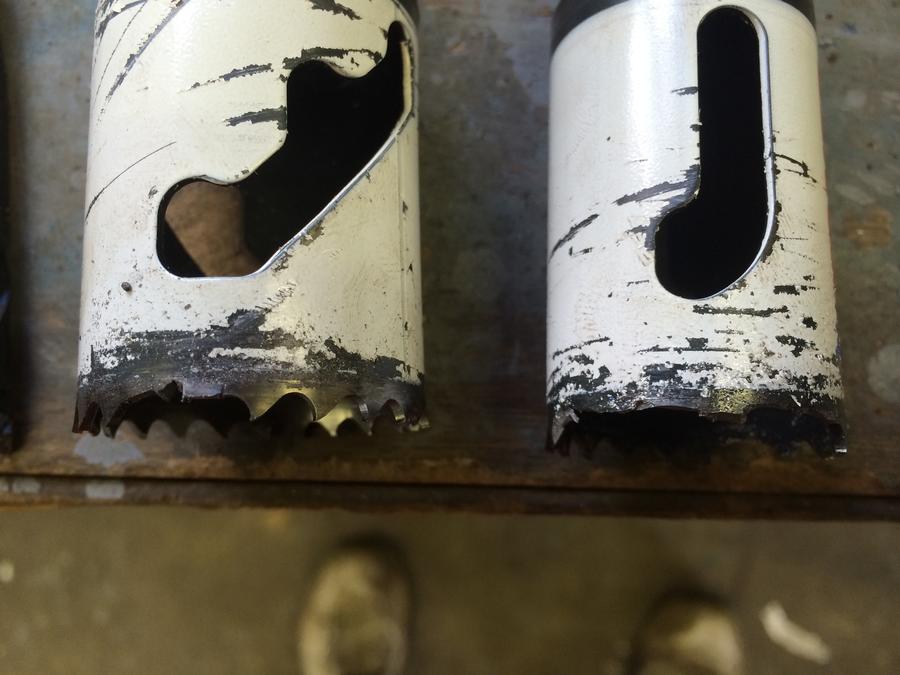

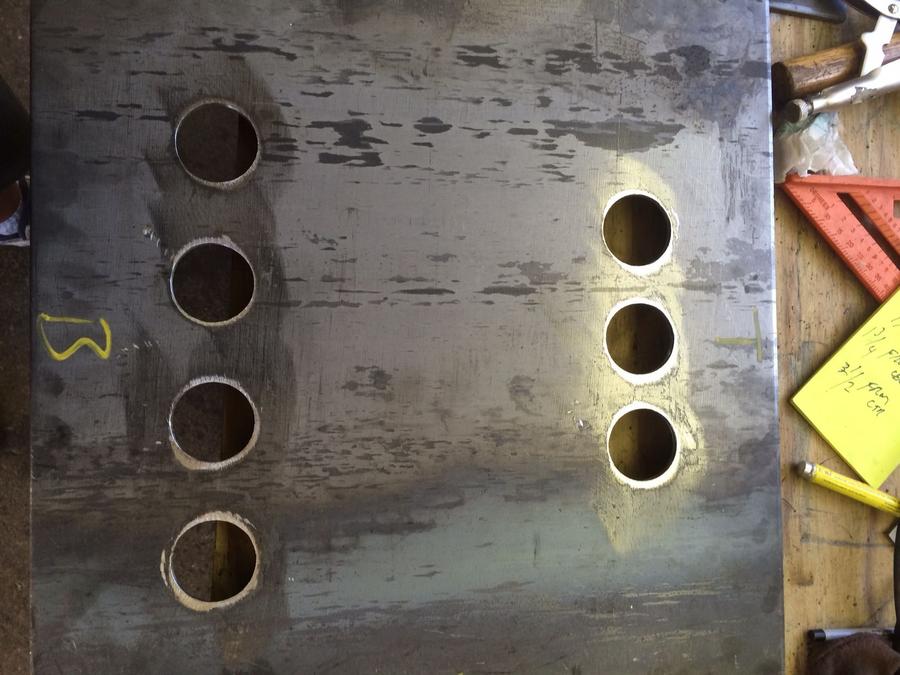

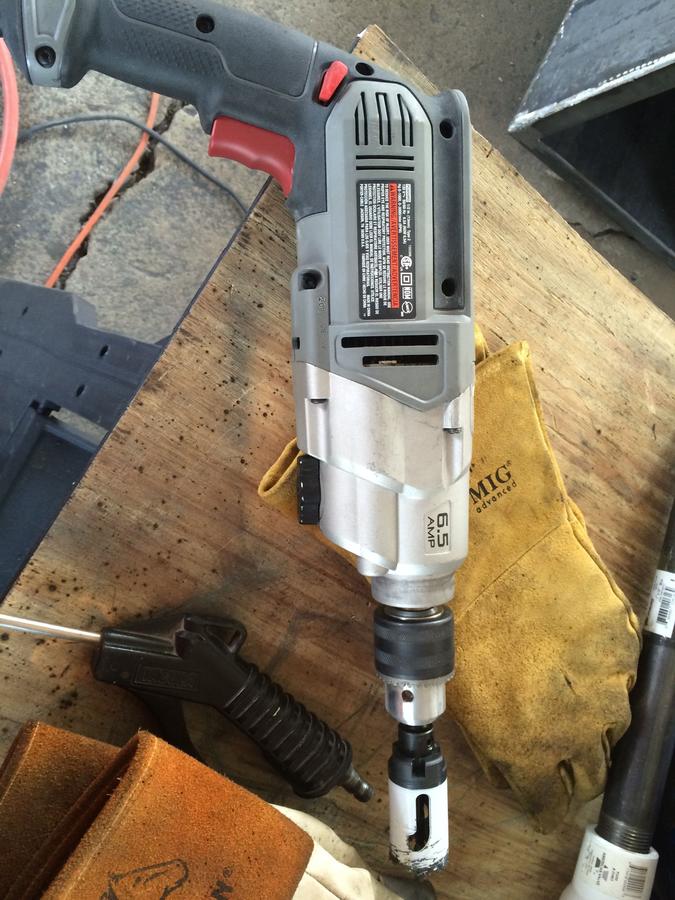

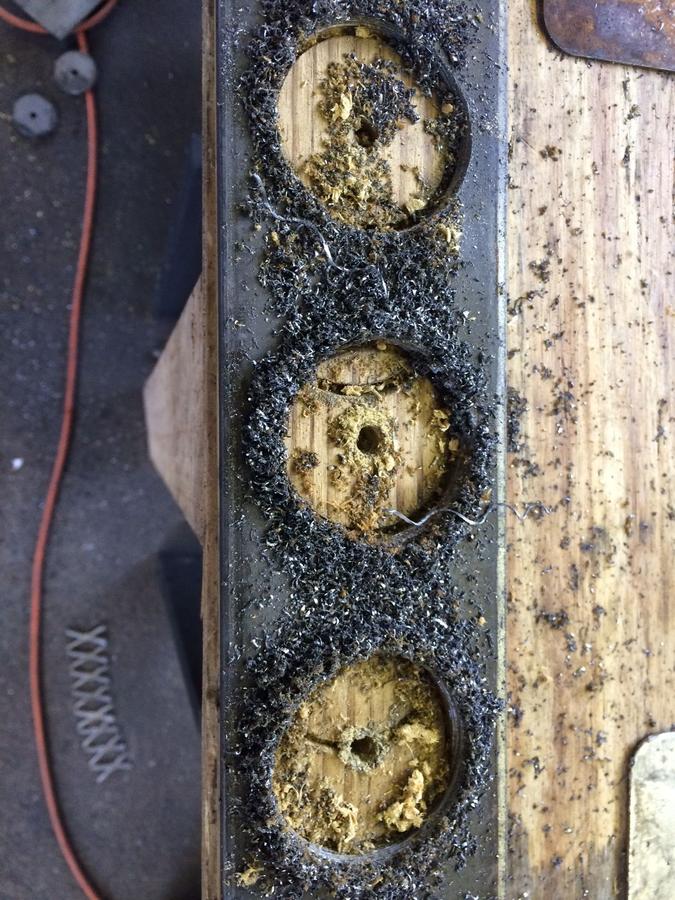

    Should have used a drill with less balls I guess. Three holes two destroyed saws.

  3. bishgeo

    bishgeo Smoking Fanatic


  4. bishgeo

    bishgeo Smoking Fanatic


  5. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Slow RPM, light pressure and lots of coolant/lubricant and that shouldn't happen...

  6. Yep got to go slow on those saws. Keep them cool!

    Like your air gap plate in the firebox, looks good.

    This thing is going to be heavy when your done, think about putting some wheels on it. I just hauled my 16" patio over to Tampa, kicked my but trying to load it on the trailer by myself.

    Life changes, and your not going to want to leave that thing behind if you move.

  7. bishgeo

    bishgeo Smoking Fanatic

    Was going slow with drill with oil but when it caught torque on that drill is an arm breaker need to use my makita. Me and the smoker is dying here it only need to go about 25 feet from garage and it's home for life.

  8. bishgeo

    bishgeo Smoking Fanatic

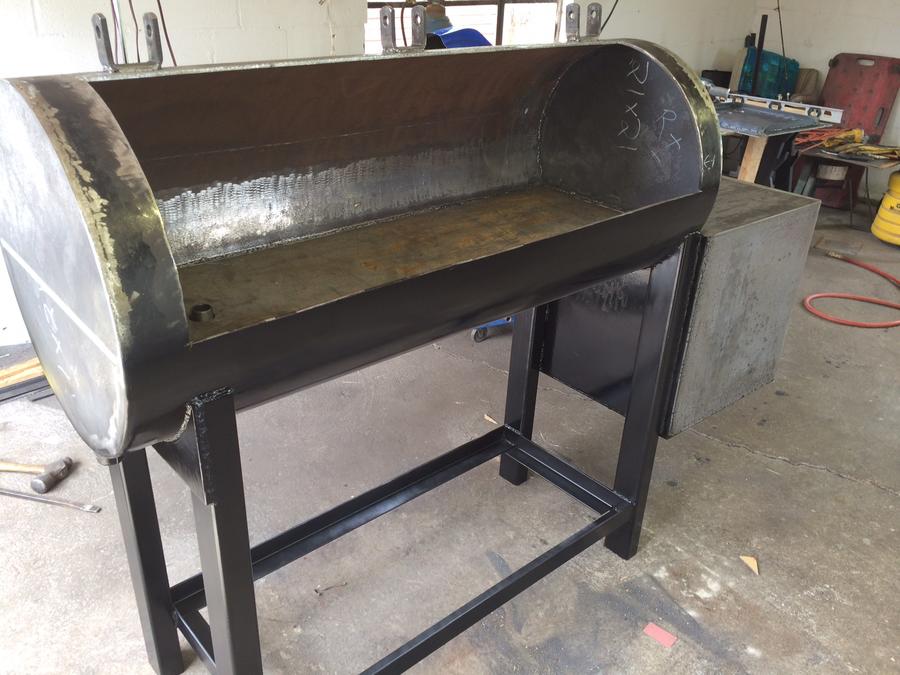

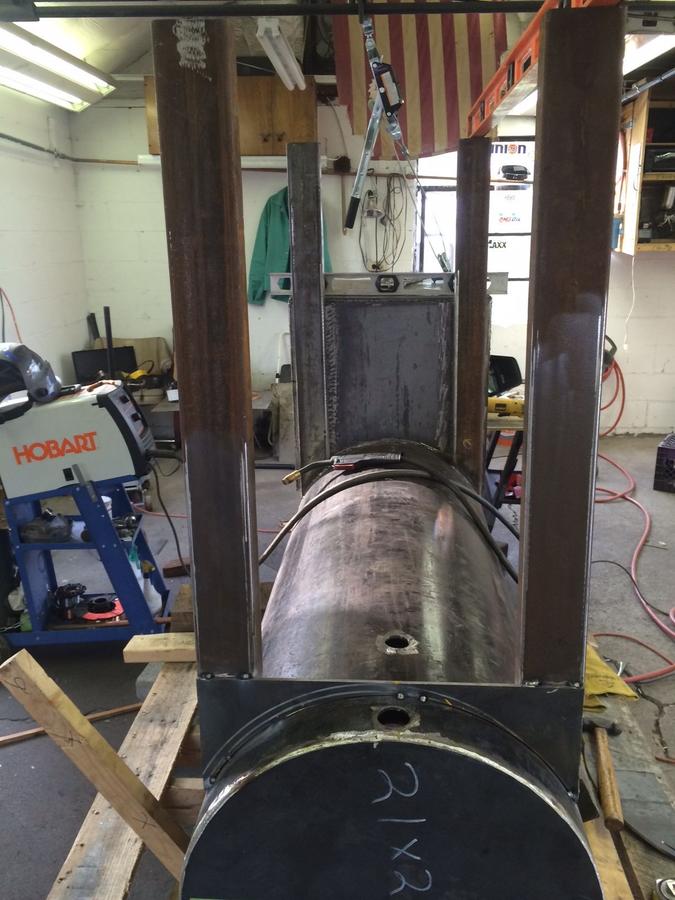

    Got my legs on.




  9. bishgeo

    bishgeo Smoking Fanatic


    Man my arm is sore I think it took a beer per hole.Have to stay lubricated you know or was that the hole saw.oh well.[​IMG]

  10. bishgeo

    bishgeo Smoking Fanatic

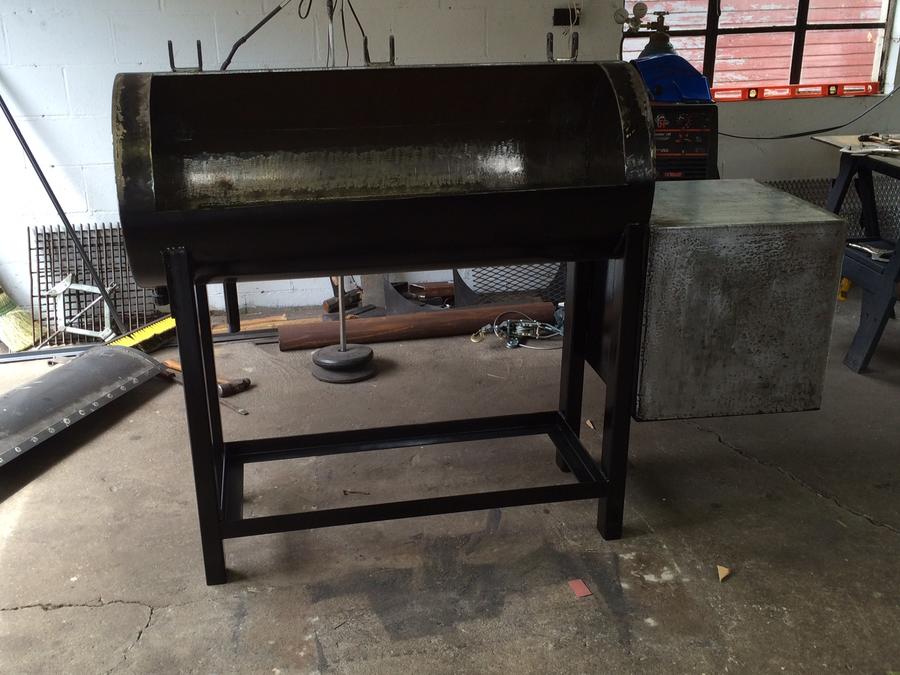

    Got it on it's feet



  11. bishgeo

    bishgeo Smoking Fanatic

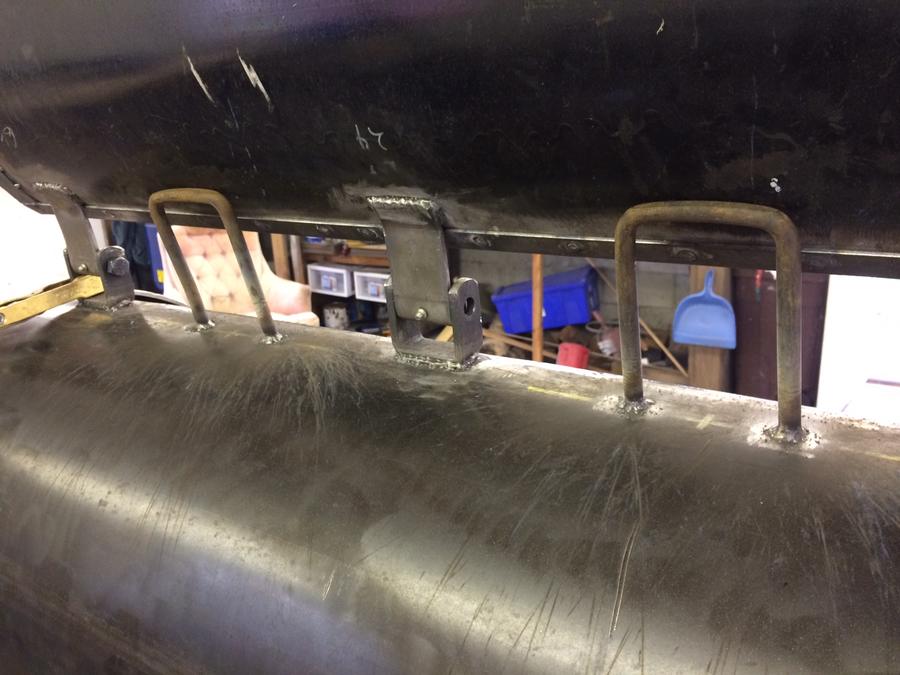

    some old f350 u bolts

  12. bishgeo

    bishgeo Smoking Fanatic




  13. lendecatural

    lendecatural Smoking Fanatic

    Looking great! You are really close to getting a fire in that thing and cranking out some great Q!

  14. Looking good, you will have smoke coming out in no time.

    Gary S

  15. qwikrnu bbq

    qwikrnu bbq Fire Starter

    Sweet! The end is in sight; keep the pics coming...

  16. bishgeo

    bishgeo Smoking Fanatic

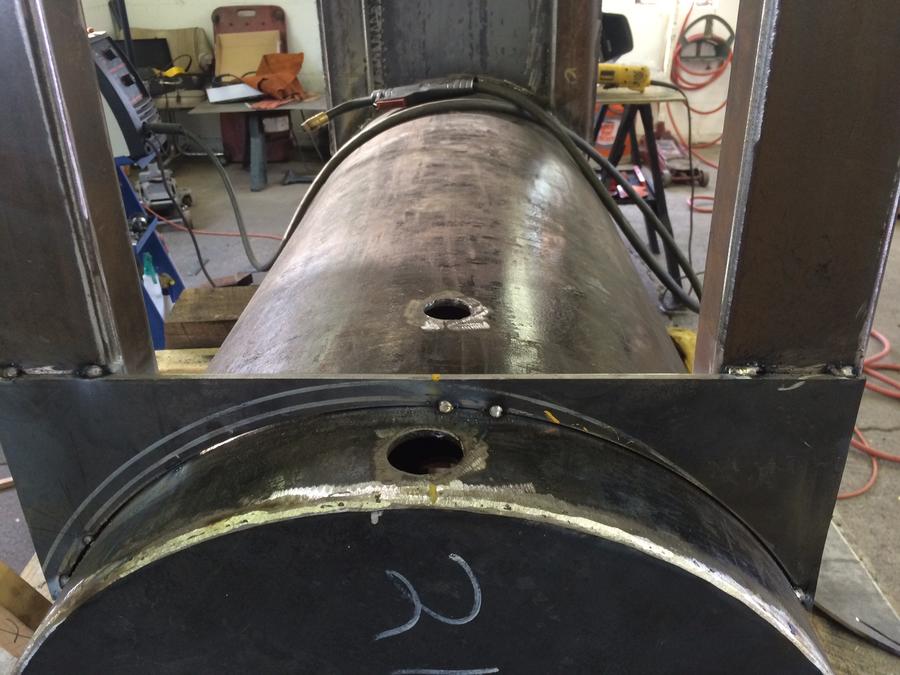

    Don't I need to weld nipples or something on door for thermometers. Are you guy just closing the lid on maverick wires or drilling a hole for them.

  17. bishgeo

    bishgeo Smoking Fanatic

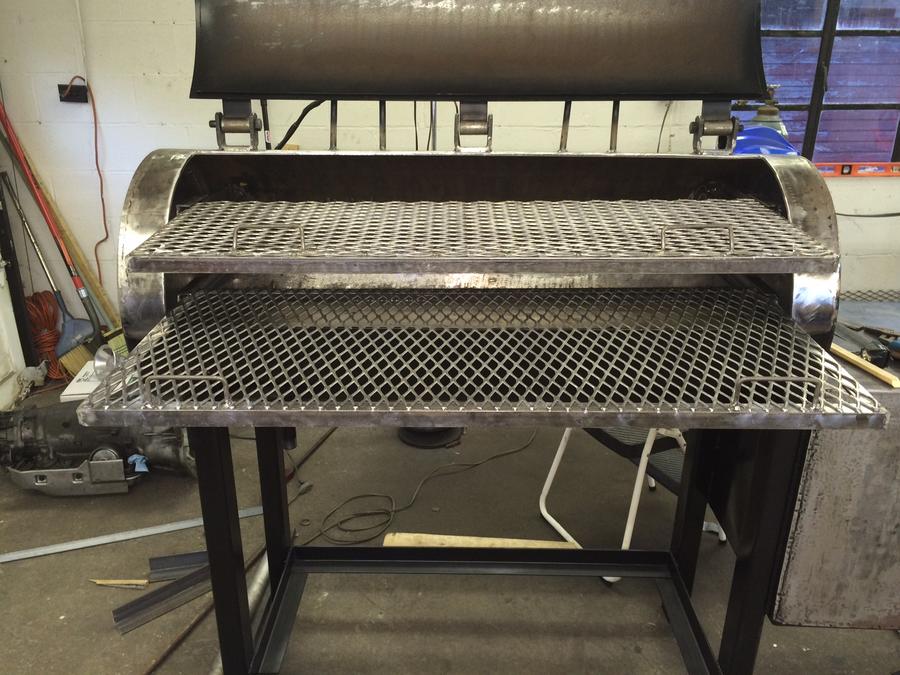

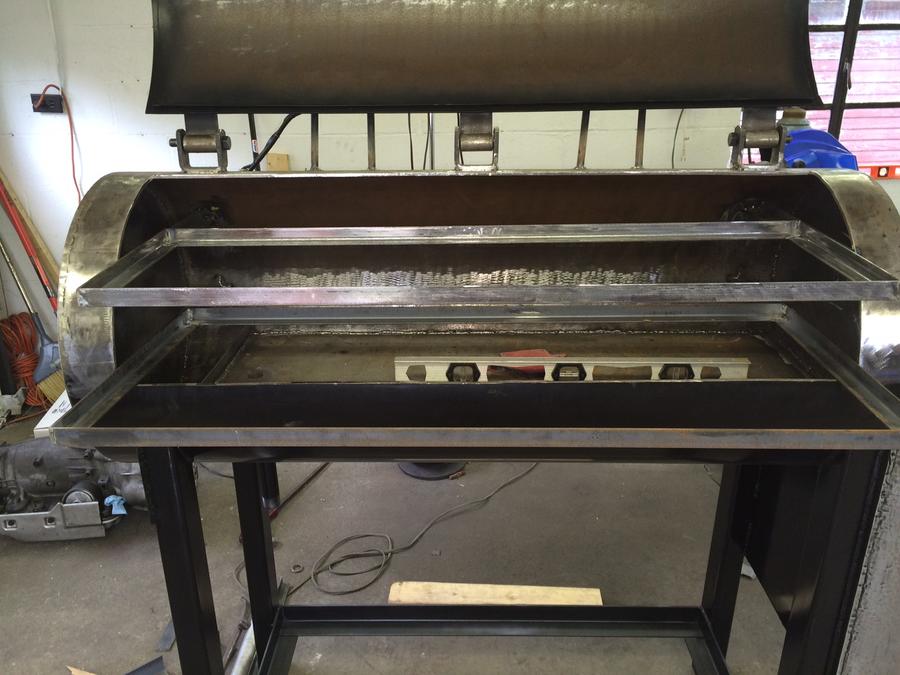

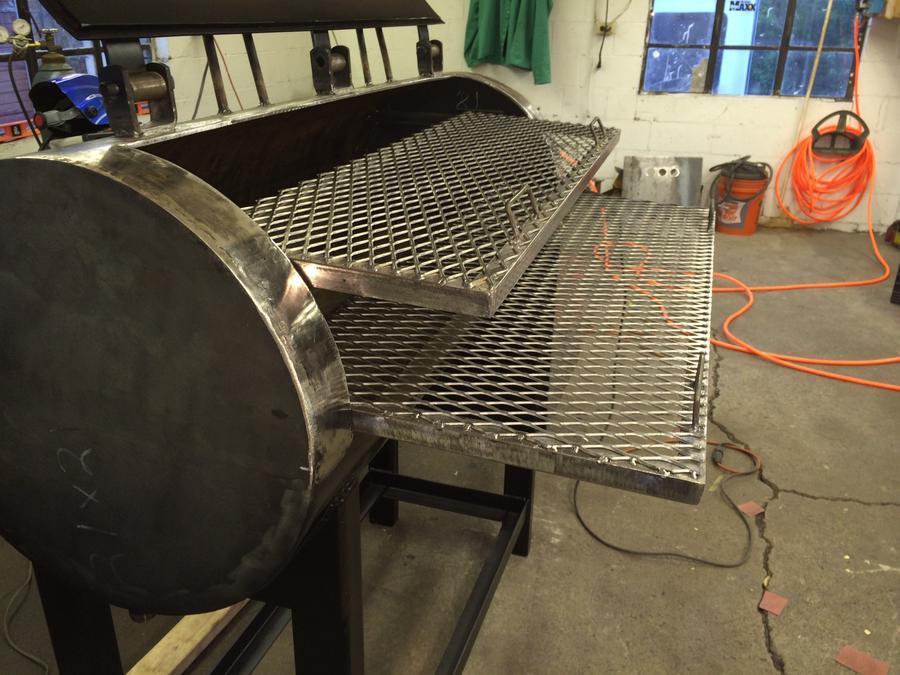

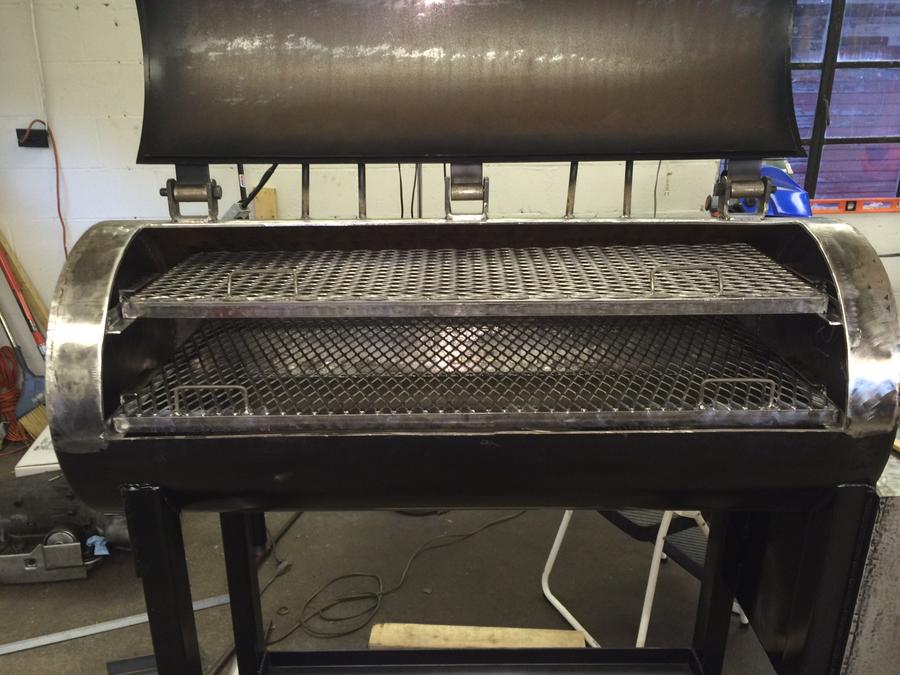

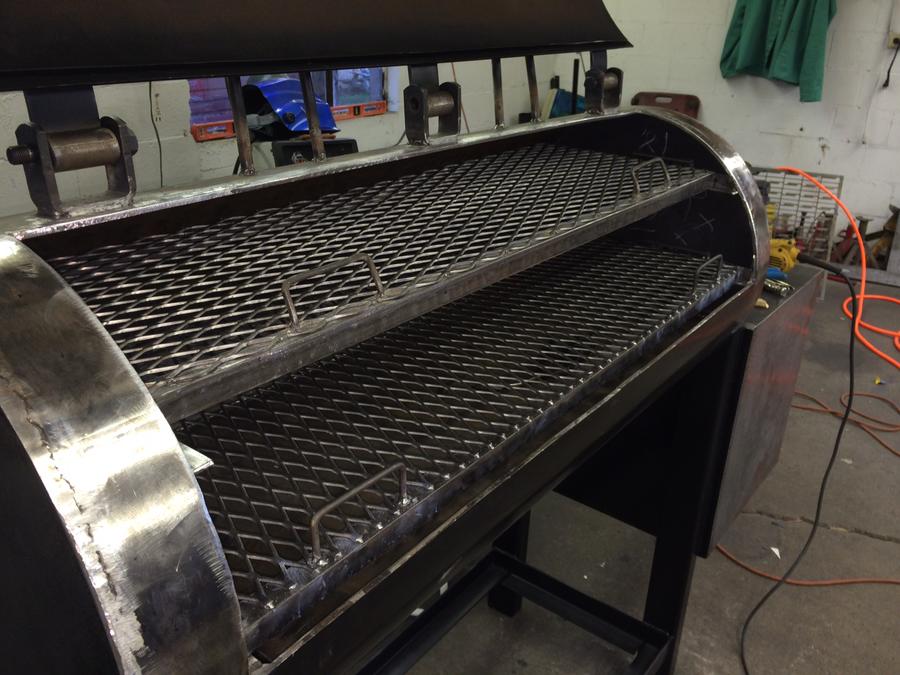

    got a little more done.


  18. bishgeo

    bishgeo Smoking Fanatic

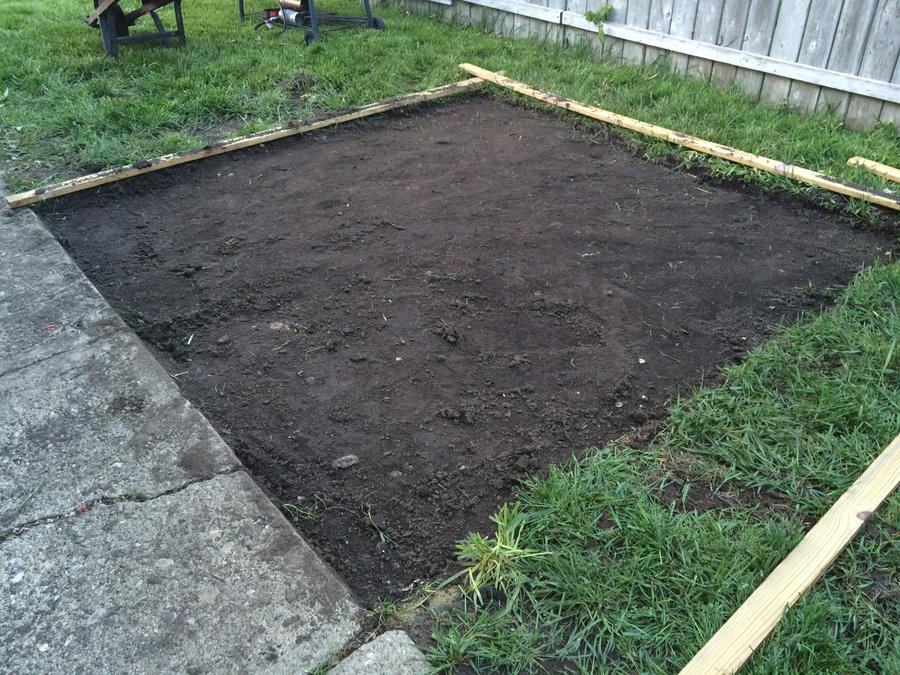

    had to make a spot for the new beast.


  19. bishgeo

    bishgeo Smoking Fanatic





  20. lendecatural

    lendecatural Smoking Fanatic

    Very nice job on the vents!

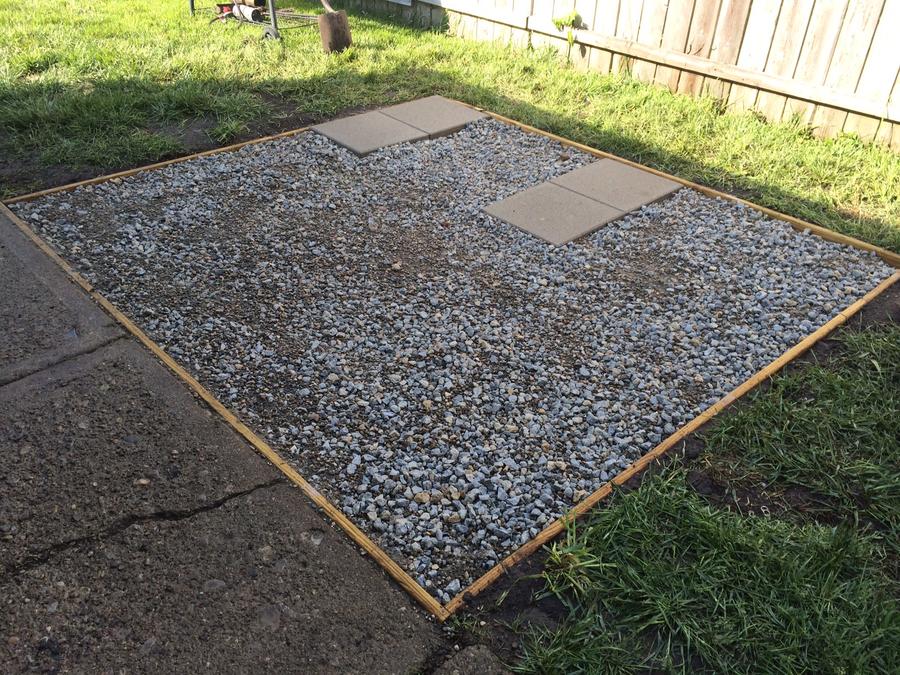

    Wow, you posted more photos after I responded, it all looks great! Love the rock setup so you don't have to worry about spilled grease, very smart!

    About the thermo leads, one of the cleaner rigs I've seen was a nipple welded in and a tapered flask plug like is used in chemistry. He slit the rubber where the holes were and kept the stopper with the leads. I don't know what size they were but they are on Amazon and maybe available locally.


    Last edited: May 18, 2014
