CrazyQ's BBQ Trailer Build

Discussion in 'Reverse Flow' started by crazyq, Feb 8, 2014.

  1. crazyq

    crazyq Meat Mopper

    Thanks your the compliments!

    yeah I really enjoy it. I could honestly leave my welds alone and they would be nice clean "stack of dimes" as they call them but I really like the smooth corners. my edges on the firebox and cook chamber are only ones I buff smooth tho. the rest stay as they are.

  2. txsean

    txsean Smoke Blower

    CrazyQ, everything looks great. Made some nice progress this weekend and it's really transforming into a nice cooker!

  3. txsean

    txsean Smoke Blower

    Did you end up insulating the deflector plate connecting the FB to the reverse flow plates?

  4. crazyq

    crazyq Meat Mopper

    I havnt insulated it yet, im gonna see how it does first and if the hot spot shows up and its a bad hot spot itll be an easy addition so we'll see how it does first.

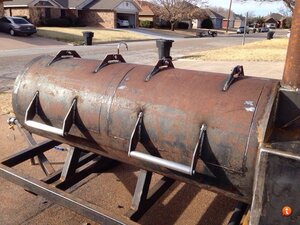

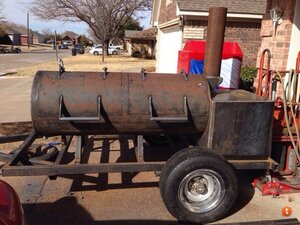

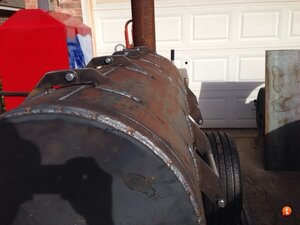

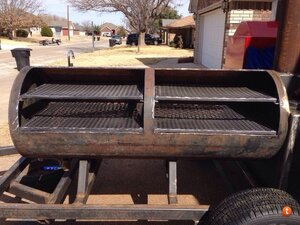

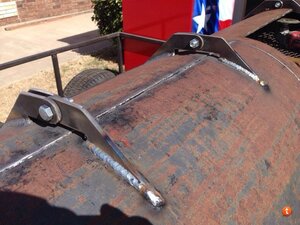

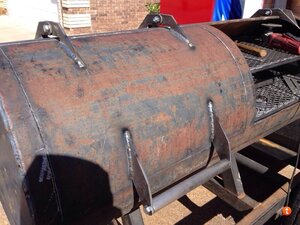

    Well here is what i got done as of today, figured it up and ive put in just under 40 hrs over the kast three days of work time in this thing. Before sun up and after sun down. Finally shut her down this afternoon and heres where i finished. The hinges and handles were made by Bullypitbbq on here. Quality, fit, and finish are second to none. Im very impressed with them and highly recommend him to anyone that needs some custom fab like this done. Saved me a heck of alot of time.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  5. raastros2

    raastros2 Smoking Fanatic OTBS Member

    nice looking rig

  6. lendecatural

    lendecatural Smoking Fanatic

    Beautiful workmanship, you are really getting close now!

  7. crazyq

    crazyq Meat Mopper

    Thanks! Yeah its really starting to move along now. I'll be burning wood in no time haha.

  8. jckdanls 07

    jckdanls 07 Master of the Pit Group Lead OTBS Member

    What a great looking smoker so far.... my question is after looking at pics.... No lip on the end of the RF plate to guide the drippings into the drain and keep drippings from dropping down into the bottom ?

  9. crazyq

    crazyq Meat Mopper

    There will be.

  10. crazyq

    crazyq Meat Mopper

    Door straps are next.

    [​IMG]

    [​IMG]

    [​IMG]

  11. Looking good, great fab skills

    gary

  12. crazyq

    crazyq Meat Mopper

    Cook chamber is pretty much done. Firebox door and stack topper on the chopping block next and then i can do the first seasoning on it and first cook.

    [​IMG]

    [​IMG]

    [​IMG]

  13. Are you planning on using any kind of door seal?

  14. crazyq

    crazyq Meat Mopper

    No with the tight fit if the doors and the door straps i shouldnt need any. The firebox door will get a seal tho. And a freezer door latch so when it closes, it closes tight.

    Last edited: Feb 23, 2014
  15. I thought I might go with a heavy gasket on my current build but decided not to with how nice my doors sealed up also, I'm just going to run a bead of black high temp silicon right at the lip to " soften " the door as is closes. My firebox seals so tight now that I have to use a screwdriver to pry the door open enough to break the seal.

  16. crazyq

    crazyq Meat Mopper

    Yeah im gonna cook with it and see how it goes. These doors are such a tight fot that gasket or rtv would just make them close bad actually make an opening so.

  17. I'm going to do the trick with Saran Wrap on the tank and apply the sealant to the door flange then clamp them shut, trim off whatever squeezes out with a razor after it dries.

    Not so worried about the seal, just like the way there is no clanging when door shuts.

  18. noshrimp

    noshrimp Smoke Blower

    Looking super, CrazyQ. I'll bet your neighbors are getting reading for the inaugural smoke! You better ice down the beverages.

    Noshrimp

  19. foamheart

    foamheart Smoking Guru OTBS Member SMF Premier Member

    The workmanship and design is excellent, but I am waiting for the paint. That is an amazing job on the smoker. I have to see how he'll compliment it with the pit. It will be interesting to see.

    This is one of those that should be entered in a competition for trailer mounded Pro Pits.

    Last edited: Feb 23, 2014
  20. raastros2

    raastros2 Smoking Fanatic OTBS Member

    havent looked in a few weeks..man thats turning out to be a wicked rig! defiantly jealous
